ASTM-D2436 Aging Anti - Yellow Testing Machine UV Lamp 300W For Paint , Resins

Brand Name : ZL

Model Number : ZL-6009A

Certification : CE,ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50 Sets

Delivery Time : 5-8 work days

Packaging Details : Aging Anti-yellow Testing Machine is packaged within wooden case.

Product name : ASTM-D2436 Aging Anti-yellow Testing Machine , UV lamp 300W ASTM-D2436 Aging Anti-yellow Testing Machine , UV lamp 300W for Paint, Resins etc.

Temperature : Room temp ～ 200℃

Temperature resolution : 0.1 degree

Accuracy : ±1 degree

Timer : 0-999H、memory-type with buzzer

Control mode : Automatic calculation controller

Heating : Hot loop

Material : Inside SUS#304 stainless steel，outside high-level paint

Contact Now

ASTM-D2436 Aging Anti-Yellow Testing Machine UV Lamp 300W For Paint, Resins

The ASTM-D2436 Aging Anti-yellow Testing Machine with UV lamp 300W is designed for testing paint, resins, and other materials. This equipment promotes the deterioration of vulcanite and calculates the change rate of tensile strength and elongation. It simulates sun and heat effects using ultraviolet radiation, allowing observation of sample resistance to yellowing over time.

Main Features

Accelerates deterioration of vulcanite and calculates tensile/elongation change rates
Simulates sun and heat effects using UV radiation
Evaluates sample resistance to yellowing using gray scale reference
Tests color changes caused by radiation, sunlight, or transport conditions
300W UV lamp enables faster test completion
Serves as basic resistance to yellowing test, aging test machine, and oven
Forced hot air circulation control system ensures uniform temperature distribution

Anti-Yellow Testing Capability

This machine simulates atmospheric environments driven by solar ultraviolet radiation. Testing for 9 hours at 50°C is theoretically equivalent to 6 months of outdoor atmospheric exposure.

Compliance Standards

CNS-3556, JIS-K6301, ASTM-D2436, ASTM D1148

Applicable Industries

Paint and coatings
Resins and plastics
Printing and packaging
Aluminum processing
Adhesives
Automotive
Cosmetics
Metals
Electronics
Electroplating
Medical and pharmaceutical

Technical Parameters

Parameter	Specification
Model	ZL-6009A
Inside Size	40×40×45cm
Volume	91×55×100cm
Temperature Range	Room temp ～ 200℃
Temperature Resolution	0.1 degree
Accuracy	±1 degree
Timer	0-999H, memory-type with buzzer
Control Mode	Automatic calculation controller
Wheel Speed	Dia.45cm, 10R.P.M. ±2R.P.M
UV Lamp	UV300W
Heating System	Hot loop
Protection Features	EGO over-temperature guiding light, overload switch ammeter
Material	Inside SUS#304 stainless steel, outside high-level paint
Weight	87kg
Power Supply	1∮, AC220V, 19.5AC

Product Images

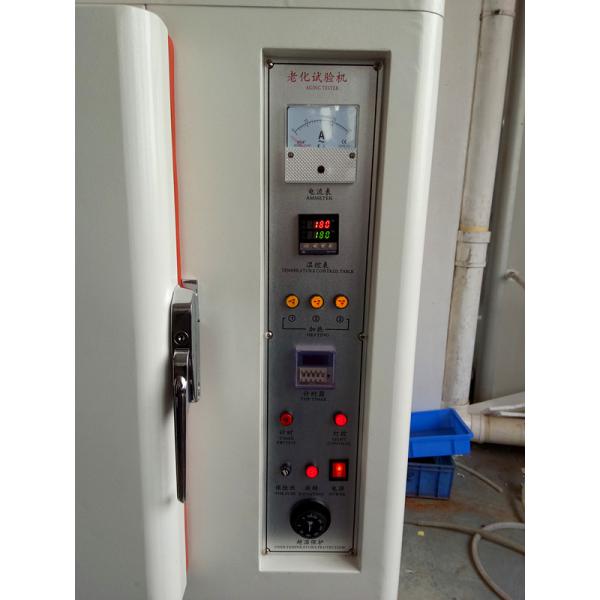

ASTM-D2436 Aging Anti - Yellow Testing Machine UV Lamp 300W For Paint , Resins
